Pre-Engineered Buildings (PEB)
Products Your location: Home >> Products >> Pre-Engineered Buildings (PEB)
Prefabricated Steel Building Garment Factory Prefabricated Steel Building Garment Factory Prefabricated Steel Building Garment Factory Prefabricated Steel Building Garment Factory

Prefabricated Steel Building Garment Factory

  • Description
  • Advantage
  • Service
  • FAQ

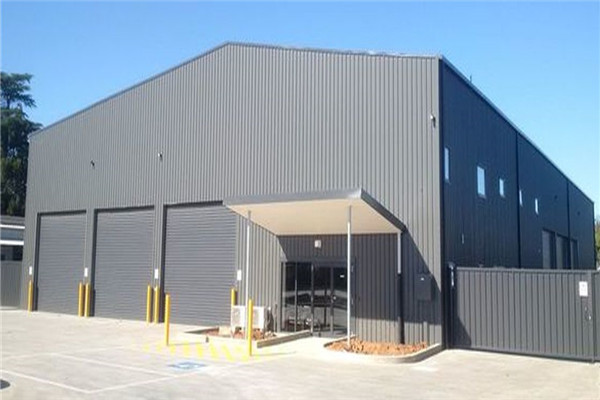

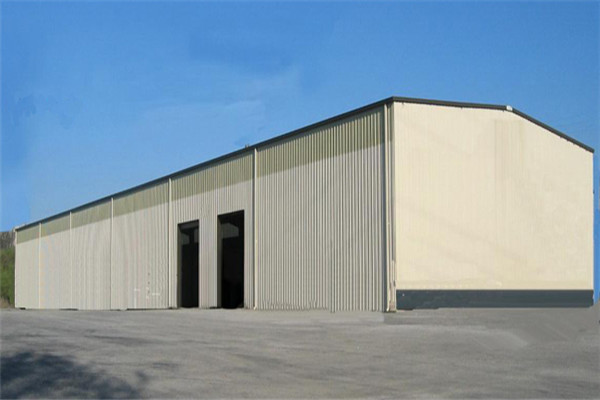

Prefabricated Steel Building Garment Factory

Prefabricated Steel Building Garment Factory is a new type of building structure system, which is formed by the main steel framework linking up H section, Z section, C section or U section steel components, roof and walls using a variety of panels and other components such as windows, doors, cranes, etc. Light steel structure building is widely used as warehouses, workshops, large factories, etc.

Steel Structure Workshop system has mild gradient, with one-way slope and single drainage area. It has characters of typical beam attached and mini roof Structures. The columns can be added in order to increase the space.

Width: No column: 18--25m, 1 column: 18--31m, 2 column: 35--46m, 3 column: 48--61m
Brim height3.7--7.5m
Roof gradient1: 48
Column space6m 7.5m 8m 9m
Rigidity, attached with the beam

Steel Structure Workshop can be used for kinds of building, which includes monospan steel frame, double-span steel frame and multi-span steel frame. It can assemble the crane. Fro portal steel frame light house steel construction, the formed steel sheet and cold bend thin wall purlins should be used as the roof. Steel column and steel girder of it should adopt welding H steel, which material are Q235 or Q345.

The load bearing parts for Steel Structure Warehouse are mainly steel structures, including steel columns, steel beams, steel structural basements, bracing systems for wall and roof. The Main Structure are usually made of Q345 Steel while the Purlin and Bracing System are made of Q235 Steel. They are the most common steel materials used for steel structure in China.

It can save time and can be installed in any weather. Also the house have advantage of fire-proof, heat/cold-insulation, non-shrinking and enlarge the work size and have little pollutions, we produce and install different kinds of light steel structure buildings which have a good framework. They are safe, easy to install and disassemble, also can be used multiple times without special tools. Special used in warehouse, workshop, temporary office, etc. We have an excellent designing team and we can produce according to the customers' requirements

Technical Parameters:

1. Main Steel Structure: Use build-up steel column, welded H-beam steel
2. Purlin: C-type steel
3. Roop panel: Single steel sheet or sandwich panel
4. Wall panel: The same to roof panel
5. Tie bar: Welded-round tube
6. Brace: Round steel
7. Column brace and lateral brace: Angle steel
8. Crane: 3T-30T
9. Angle brace: Hot-rolled angle steel
10. Edge: Color plate
11. Gutter: Stainless steel
12. Down pipe: PVC Pipe
13. Door: Sandwich-panel door or Rolling door
14. Window: Aluminum alloy window or PVC window

"Shijiazhuang Sanhe Steel structure Co., LTD." is professional manufacturer who is devoted to steel structure construction. We provide the whole set of services include making construction designs, producing products and installation. we can Custom Design Steel Structure Building ,supply with you free Steel Structure Warehouse Drawings

We are located in Shijiazhuang city, Hebei province,China.
There are 8 production lines of steel structure and 26 production lines of corrugated steel sheet.
The annual output of steel structure components is 8000 tons;
The annual output of color steel sheet is 7000 tons;
The annual output of galvanized steel sheet is 2000tons.
Which generates an annual revenue of RMB60,000,000 and the number is increasing year by year !

Main Projects


Main advantage

15 years experience in producing and construction business,professional design team

strict quality control inspection team to make sure products meet your requirments

Located in rank 1 st province of steel output in China,which large advantage in material.
50 high qualified & experienced engineers and installation team

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Provide quotation

* View our Factory

After-Sales Service

*Engineers available to service project overseas.

*Reasonable advice for usage and


Our customers

Packing & Delivery
According to the container size and customer's requirement, 20'GP, 40'GP,40'HQ,45'HQ are ok, but 40'HQ is usually.

Packaging Details
All the steel structural components will be placed on pallets and tied with steel bands to improve the efficiency of loading and unloading containers. Accessories such as doors and Windows will be protected by packing materials to avoid damage during transportation.

1.What kind of company you are,manufacturing factories or trading companies?

A:We are steel structure building Manufacturer located in Hebei, you will enjoy the best price and competitive price.

2. Whats the quality assurance you provided and how do you control quality ?

A:According to ISO quality management system,established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc.
Third-party detection is permitted.

3. Can you offer designing service?

A:Yes, we have professional design engineers. We could design full solution drawings as your requirments. They use software: Auto CAD,PKPM, MTS, 3D3S, Tarch, Tekla Structures(Xsteel)V12.0.etc.

4. Do you offer guiding installation on site overseas?

A:Yes, we will send you the detailed installation drawing, if you need, we can provide the service of installation, supervision and training by extra. We can send our professional technical engineer to supervise installation on site overseas.
