steel structure warehouse double storey

Light steel structure of all the use of cold-formed thin-walled steel component system composed of steel with high anti-corrosion high-strength cold-rolled galvanized sheet manufacturing, effectively avoid the steel plate in the construction and use of the process of corrosion, increasing the life of light steel components. Structural life of up to 50 years.

steel structure warehouse double storey
Specifications:
1) Main Steel: Q345, Q235, Q345B, Q235B etc.
2) Column & Beam: Welded or Hot rolled H-section
3) Connection method of steel structure: welding connection or bolt connection
4) Wall & Roof: EPS, Rockwool, PU sandwich, corrugated steel sheet
5) Door: Rolled up door or Sliding door
6) Window: Plastic steel or Aluminum alloy window
7) Surface: Hot dip galvanized or painted
8) Crane: 5MT, 10MT, 15MT and more
Drawings & Quotation:
1) Customized design is welcomed.
2) In order to give you an exactly quotation and drawings, please let us know length, width, eave height and local weather. We will quote for you promptly.

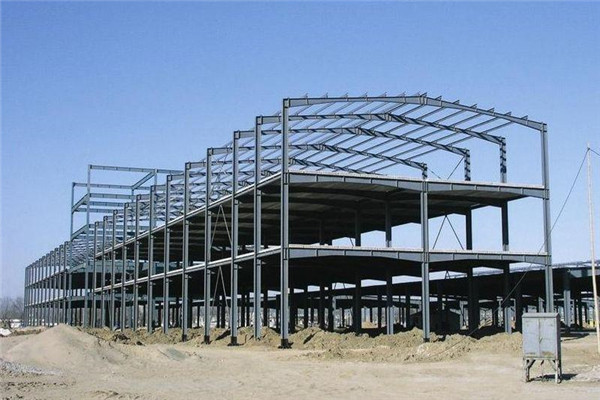

Steel structure building formed by Steel Column , Steel Beam ,Bracing ,Purlin , all the Steel Structures Fabricated in Workshop and delivery to Project site , quickly installation , green building and save manpower.

Application: The steel workshop warehouse building is widely used for workshop plant, warehouse, office building, steel shed, aircraft hangar ,car shop, chicken house, cow house, etc.

Enviromental friendly
Lower cost and maintenance
Long using time up to 50 years
Stable and earthquake resistance up to 9 grade
Fast construction, time saving and labor saving
Good appearance

-Professional design and engineering team: Full solution for steel structure design.
-Procurement and Manufacture for all material for prefabricated building. We have a professional procurement team to make sure all the materials are with good quality.
-Site management & Installation supervision, We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works willbe OK.

1.Common type of the industrial building?
Reply: Portal frame is the usual type in the industrial workshop and warehouse shed. Other types also could be designed and manufacturer as per clients’ request.
2.What’s the quality grade of the steel structure components?
Reply: Q345 is used for main steel structure, Q235 is used for secondary steel structure.
3.How about the delivery time?
Reply: Usually,within 45-60 days after the order confirmed, also depends on the fabrication quantity.
4.How about the derust grade?
Reply: Ball blasting Sa 2.5 on main steel structure ;
manual derust St2.0 on secondary steel structure.
5.What kind panel used for the roof and wall?
Reply: Color corrugated steel sheet and sandwich panel could be used. Sandwich panel performs well on the heat insulation,sound insulation.Common sandwich materials are EPS,glass wool,rockwool and PU.
6.How to install it?
Reply: We will furnish you the detailed construction drawing and the construction manual which could help you to erect and install the building step by step. We also could send the engineer to your local to help you if needed.
7.Maintenance:
Reply: Finish paint need be done after the frame installed, and do it again after 6-8 months.So the surface will stay more time.
