Corrugated steel sheet
Products Your location: Home >> Products >> Corrugated steel sheet
Corrugated Metal Sheets Corrugated Metal Sheets

Corrugated Metal Sheets

  • Description
  • Advantage
  • Service
  • FAQ

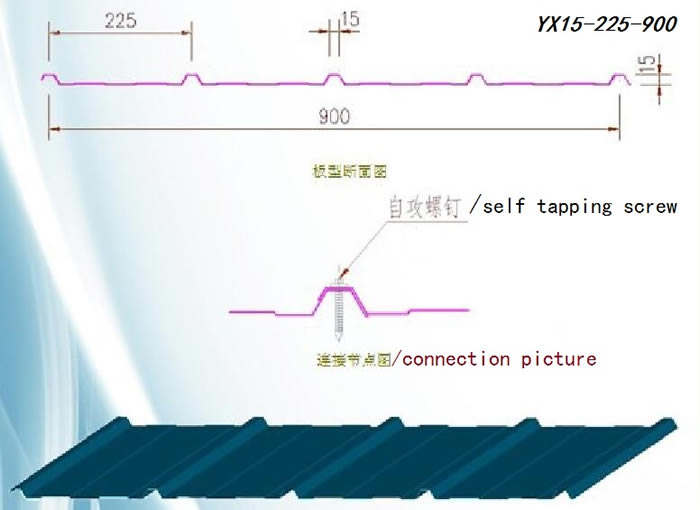

YX15-225-900 corrugated metal sheets

Type Effect width Expansion width Thickness(mm) Section Inertia(cm4/m) Section resistance(cm3/m) Application
YX15-225-900 900mm 1000mm 0.4 0.96 0.79 Lining and Wall panel
0.5 1.23 3.85
0.6 3.85 4.55

Corrugated metal sheets
Roofing & wall corrugated sheet is the corrugated metal sheets which has been wave formed with the cold rolling treatment. corrugated metal sheets has been widely used in public buildings, industrial buildings,commercial and residential buildings. It’s the main choice as roof and wall for industrial buildings(such as workshop,warehouse).
With widely application of corrugated metal sheets, a lot of new ccorrugated metal sheets styles have come up, and the appearance is more beautiful and mechanical performance is more reasonable.

Advantages of corrugated metal sheets
1. Light weight
2. High strength
3. Attractiveappearance
4. Widerangeofapplication
5. Convenient installation
6. Low cost
7. Good durability: Normally,the retention age of surface layer is 15~20years, then paint it each 5~8years.

What are the common sizes of corrugated metal sheets?
V840、V900、V910、V880、V750、V780、V825and so on.
